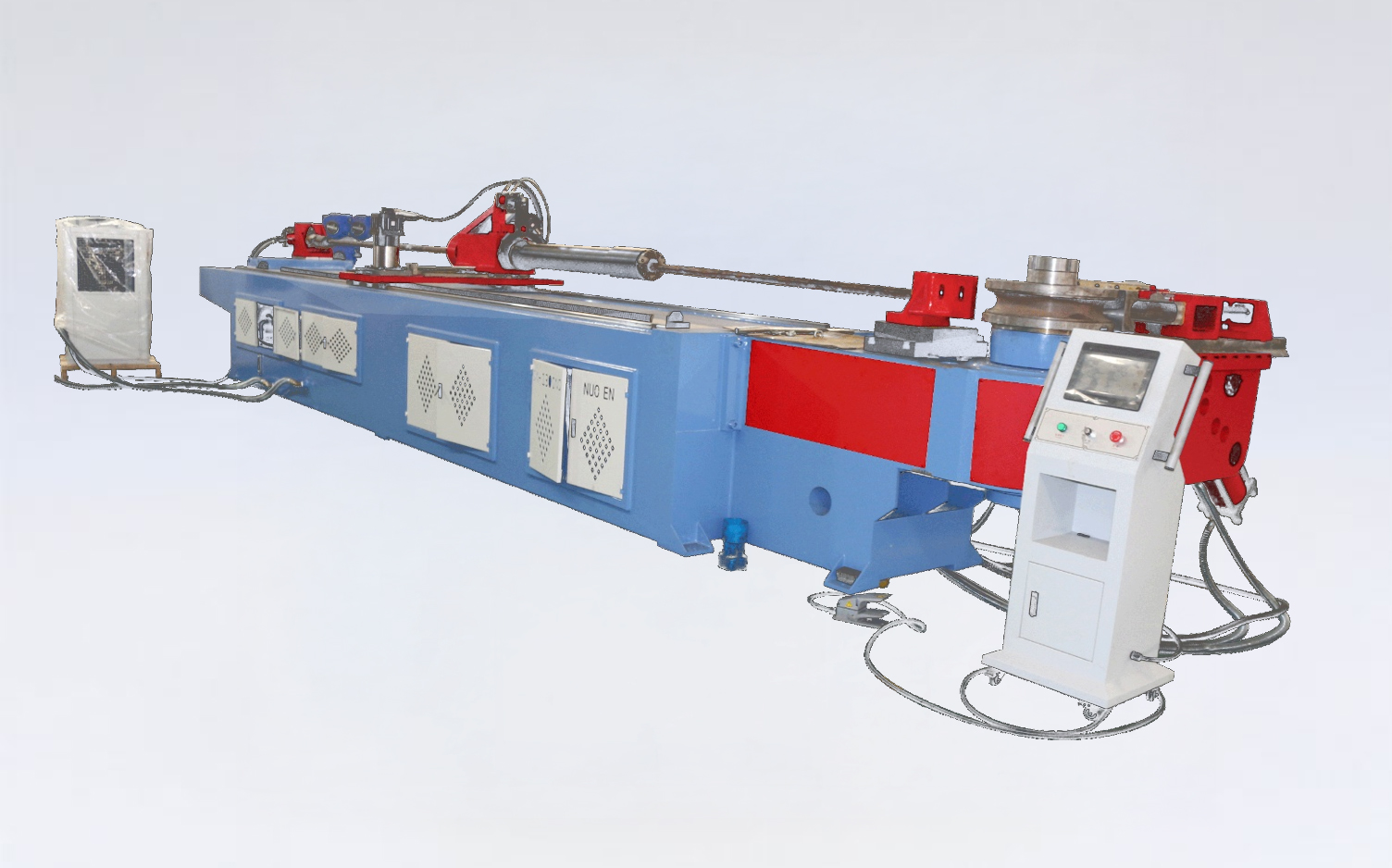

· 제품특징

JIS 15A ~ 150A(최대 16T)까지 다양한 파이프 규격 대응 및 주름 없는 안정적 밴딩 품질

콜렛척 이송·회전의 서보축 + 유압축 구성

최대 파이프 유효길이 6000mm 대응

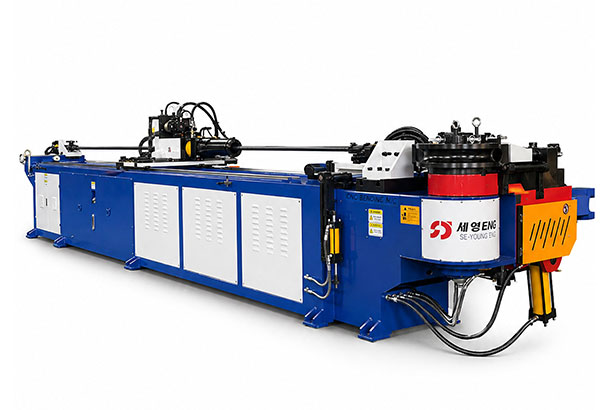

· 제품상세 설명

15" 터치스크린 HMI 디스플레이(4개 언어 지원)

1.5D ~ 4D까지 다양한 밴딩 형상 대량 생산 가능

자체 개발 선박 배관 전용 프로그램(UI)

USB 또는 PC 내 자체 밴딩 데이터 저장 가능

Specifications / Model	PBM-A15	PBM-A25	PBM-A40	PBM-A50	PBM-A65	PBM-A80	PBM-A100	PBM-A150
Pipe Diameter to be Proceed	15A~20A & 1/2" ~ 3/4"	25A & 1"	32A~40A & 1-1/4"~1-1/2"	50A & 2"	65A & 2-1/2"	80A & 3"	100A & 4"	125A~150A & 5"~6"
Bending Capacity	30mm * 5.6t	34mm * 6.35t	48mm * 7.14t	60mm * 8.74t	76mm * 9.5t	89mm * 11.12t	114mm * 13.5t	168mm * 9.5t
Max. Bending Radius	120mm	136mm	192mm	240mm	304mm	356mm	456mm	672mm
Pipe Effective Length	6,000mm
Mandrel Effective Length	6,500mm
Working Speed / Bending	90°	90°	90°	80°	70°	60°	40°	20°
Working Speed / Feeding	400mm	400mm	400mm	400mm	300mm	300mm	300mm	200mm
Working Speed / Rotation	190°	190°	190°	190°	190°	190°	190°	190°
Dimensions(mm / L*W*H)	7,700*1,150*1,400	7,900*1,250*1,400	8,000*1,500*1,400	8,300*1,500*1,400	8,800*1,450*1,500	9,500*1,900*1,700	10,000*2,100*1,700	10,700*2,500*1,900
Machine Weight	2,800kg	3,200kg	4,000kg	5,500kg	7,200kg	12,000kg	13,000kg	20,000kg

Specifications / Model	PBM-A15	PBM-A25	PBM-A40	PBM-A50	PBM-A65	PBM-A80	PBM-A100	PBM-A150
The Axis of Hydraulic System	PIPE LIFT, CLAMP, PRESS, BENDING, MANDREL, CHUCKING				PIPE LIFT, MANDREL LIFT, CLAMP, PRESS, BENDING, MANDREL, CHUCKING
The Axis of Servo System	Pipe Feeding & Rotating

Specifications / Model	PBM-A15	PBM-A25	PBM-A40	PBM-A50	PBM-A65	PBM-A80	PBM-A100	PBM-A150
HMI System	PLC CPU : MITSUBISHI Q Series(15"), HMI : LS IXP2-1500A, supports Korean, English, Chinese, and Vietnamese language conversion
Mold	Collet Chuck, Mandrel Bar, Clamp, Press, Bending Former, Mandrel
Accessory	Foot Switch

Specifications / Model	PBM-A15	PBM-A25	PBM-A40	PBM-A50	PBM-A65	PBM-A80	PBM-A100	PBM-A150
Main Power Supply	380VAC, 3Ø 50/60Hz 70Amp Max
Data Storage	USB, HMI
Bending Data	XYZ data to Bending data Conversion

GUI Software for PC	1 Copy
Specification for HMI System	PLC CPU : MITSUBISHI Q Series(15") HMI : LS IXP2-1500A Flash : 1GByte Operation RAM : 1GByte Backup RAM : 1MByte Certification : CE, KC, UL, IECEx, ATEX, KCs Protection Standard : IP66(UL type-4x, NEMA 4x 기준포함)
